Product Information

My-T-Soft CE is the premium on screen keyboard for Windows CE. Originally released as a component of IMG's Build-A-Board On screen Keyboard Designer Tool for OEMs and large corporate clients, the demand led us to release a version of My-T-Soft CE as a stand alone product. Clients can use the included templates or create their own custom virtual keyboard layouts from within Build-A-Board and drop them into the CE product or any other IMG on screen keyboard program.

IMG's Build-A-Board Keyboard Designer Tool provides a comprehensive environment for creating, modifying, and managing groups of buttons, panels, or a virtual keyboard on screen for the user interface, which can either be dropped into the My-T-Soft family of products (My-T-Pen, My-T-Touch, My-T-Soft, My-T-Soft CE, My-T-Soft TS, or OnScreen with Word Completion) or the tool can generate it's own "lite" run-time targets for Windows CE thru 8, Linux, and Mac (Android, iOS, and other O/S's in development).

Sample layout on Windows CE

OEM, Distribution, Site & Enterprise Licenses are available.

Features

With Build-A-Board & My-T-Soft you can...

  • Drag and drop keys with modifiable labels, actions, views

  • Multiple target platforms - Windows CE thru 8, Linux, Mac OS X, and others

  • Create any on screen keypad, keyboard, or membrane layouts

  • Replace old legacy membrane panels with virtual on screen panels

  • Select Colors of Text, Keys, and Panels

  • Use High Resolution 3D on keys

  • Drag & drop images / add images to keys and panels

  • Select Fonts

  • Build & Test within the Builder Environment locally (does not require Target system)

  • Cut/Copy/Paste Keys

  • Align keys - Top/Left/Bottom/Right/Horizontal Center/Vertical Center

  • Evenly Space Keys

  • Size Keys to match Width/Height/Both Width & Height

  • Center Key or Keys

  • Create keystrokes along with full-featured macros in Key Action

  • Built-in Commands: Close, Minimize, Save Position

  • Open different layouts from user-accessible keys or manage programmatically

  • Play MIDI files (on supported platforms)

  • Play Sounds (Wave files) (on supported platforms)

  • Run External programs, Execute Shortcuts, Use File Associations to launch host application

  • Save and Manage projects

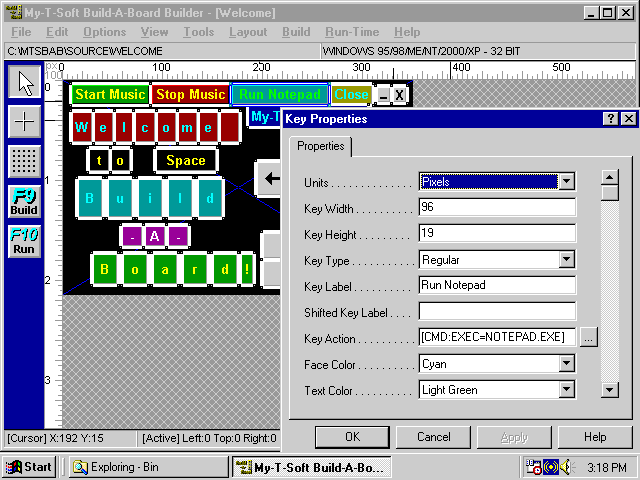

Build-A-Board Onscreen Keyboard Builder Screen Shot

Some Sample Layouts

Build-A-Board Onscreen Keyboard Example Membrane Panel Layout Build-A-Board On screen Keyboard Example Large US Layout Build-A-Board Onscreen Keyboard Example Large US Alternate / international input Layout Build-A-Board On screen Keyboard Example Small French Layout

An Ideal Complement to Pen, Rugged, Tablet PC & Touchscreen based Systems!

Developer friendly

Developer's Kit Available

Pre-built Layout Templates are included in the install packages:

  • English-US
  • English-UK
  • French
  • Italian
  • German
  • Spanish
  • Portuguese
  • Hungarian
  • Other alternate layouts with international and special characters are constantly being added.

The pre-built layouts are all built from Build-A-Board, and can be modified or different layouts can be added and easily selected by the Input Panel option in Control Panel.

Specifications

My-T-Soft CE software is implemented in 2 distinct ways for operation in Windows CE. One target is written as standard Windows application and the other is a drop-in SIP (Software Input Panel) add-on.
  • Processor support includes ARM, x86, MIPS, etc.
  • Compatible with all properly written Windows applications
  • Developed in C/C++ - written at same level as Windows operating system for maximum capabilities
  • Accesses Windows API via standard interfaces/System DLLs - No frameworks or special environment required

Technical Information

My-T-Soft CE is the Windows CE based run-time component from IMG's Build-A-Board. It is made available as a separate purchasable product for certain customers that prefer the license per unit, rather than the platform licensing available within Build-A-Board.

Most Windows CE customers have some level of interaction with IMG staff due to the varied nature of their needs and customization capabilities available in the embedded world

Download

Pocket PC Input Panel

Mobile PC Input Panel

For other processors, other configurations, or for more information, please contact IMG directly

Order

My-T-Soft CE Suggested Retail Price (Quantity 1) is US $24.95.
  • Run-time files are licensed per workstation or device.
  • Supports: Windows CE / .NET / Mobile
  • For Thin Clients running under Windows Terminal Server / Terminal Services, please see My-T-Soft TS
  • Run-time support for Windows CE includes MIPS, ARM, X86, SH3, SH4 processors
  • Catalog #: 12412

Please Note: The website only handles small quantity pricing.
  • For Volume / Site / Enterprise Licensing or OEM / VAR / Reseller Pricing - Please Contact IMG Sales
